Geotextile
Shinyang’s geotextiles are installed on soft ground to prevent deformation such as loss of soil or sinking of soil caused by rainfall or to prevent rainfall from being discharged into waste water after it is introduced into waste.

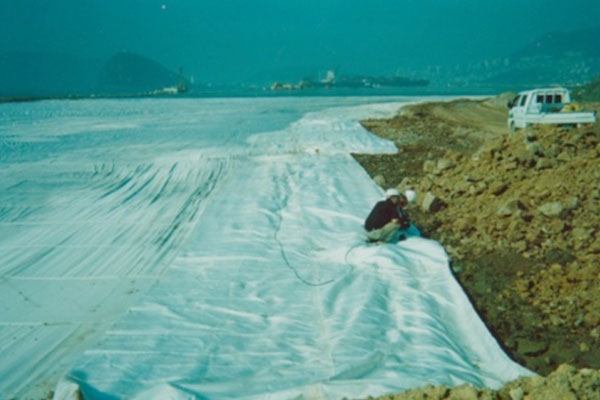

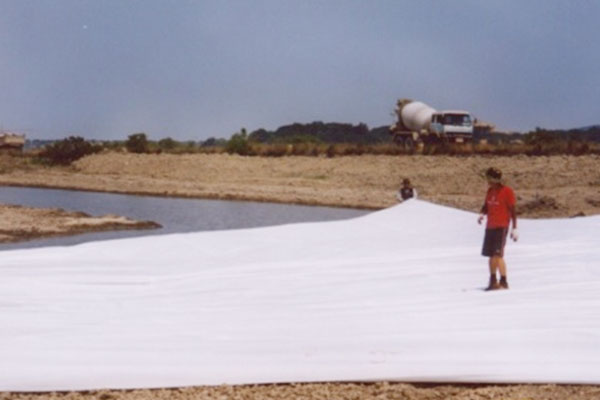

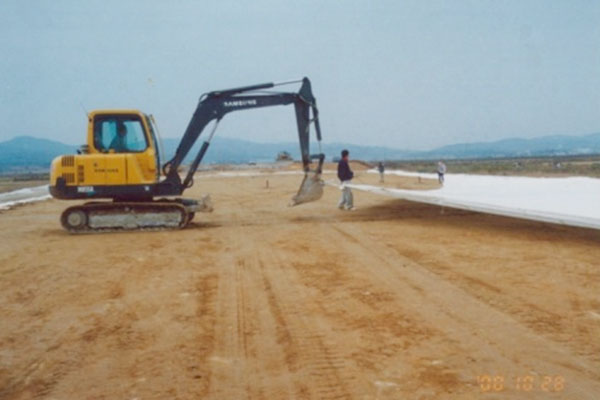

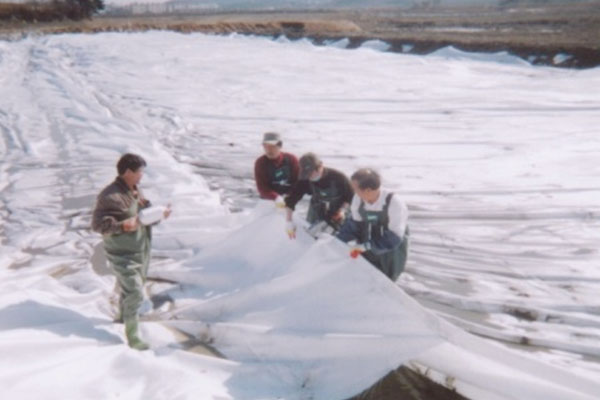

Geotextile installation
Uses of SY MAT
• Soft ground reinforcement
• Floating settlement Prevention
• Scour protection
• Securing heavy equipment traffic in soft ground
Advantages of SY MAT
• Easy for installation
• High tensile strength per unit weight
• High heat resistance and chemical resistance
• Easy to install underwater due to large weight
• Uniform permeability
Economic Effect of SY MAT
• Significant reduction of soil volume
• Significant savings in labor and transportation costs
• Automation of installation
• Easy construction management
• Shortened construction period

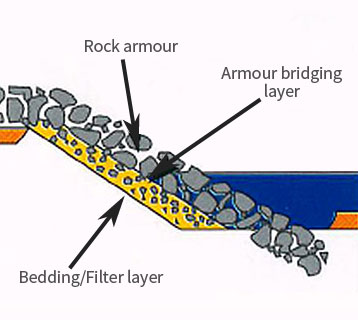

Erosion control Without geotextile

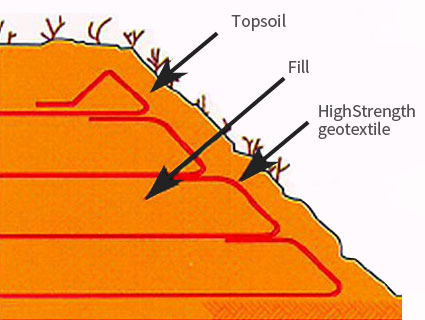

Reinforced slope
Property sheet of SY MAT
SY PP MAT is a product made of polypropylene yarn and it has a large tensile strength per unit weight.
It is widely used for separation, reinforcement and drainage of soft ground in harbors, reclamation, landfill, road construction, railway construction, and river construction.
| unit | SYM3 | SYM5 | SYM10 | Test method | |
| Weight | g/㎡ | 150 | 200 | 300 | KS K ISO9864 |
| Tensile strength | kN/㎡ | 30 | 50 | 100 | KS K ISO10319 |
| Elongation | % | 10~30 | KS K ISO10319 | ||
| Joint strength | kN/㎡ | 15 | 25 | 50 | KS K ISO10321 |
| Permeability coefficient | cm/sec | Over 10-2 ~ -4 | KS K ISO11058 | ||
| Material | – | PP | KS K ISO9864 | ||
| Specific gravity | – | Over 0.9 | |||
| Shape | – | Textile | Visual discrimination | ||
Property sheet of SY MAT(high tensile strength)
PET MAT (high tensile strength) of SHINYANG Co., Ltd is made of polyester high strength yarn, and it has the same strength in the longitudinal and width direction, tensile elongation is 10 ~ 30%, and it is widely used for a various range of purposes in soft ground construction
| unit | SYM3 | SYM5 | SYM10 | SYM15 | Test method | |
| Weight | g/㎡ | 150 | 200 | 300 | KS K ISO9864 | |
| Tensile strength | kN/㎡ | 30 | 50 | 100 | KS K ISO10319 | |
| Elongation | % | 10~30 | KS K ISO10319 | |||
| Joint strength | kN/㎡ | 15 | 25 | 50 | KS K ISO10321 | |
| Permeability coefficient | cm/sec | Over 10-2 ~ -4 | KS K ISO11058 | |||
| Material | – | PP | KS K ISO9864 | |||
| Specific gravity | – | Over 0.9 | ||||
| Shape | – | textile | Visual discrimination | |||
Property sheet of SY MAT(low elongation)
The PET MAT (low elongation) of SHINYANG Co., Ltd. is a polyester low shrinkage high tenacity yarn which has different tensile strength and elongation in the longitudinal and width direction, so that it needs high strength low stretching ratio in one direction such as road building.
| unit | SYM3 | SYM5 | SYM10 | Test method | |
| Weight | g/㎡ | 150 | 200 | 300 | KS K ISO9864 |
| Tensile strength | kN/㎡ | 30 | 50 | 100 | KS K ISO10319 |
| Elongation | % | 10~30 | 10~30 | 10~30 | KS K ISO10319 |
| Joint strength | kN/㎡ | 15 | 25 | 50 | KS K ISO10321 |
| Permeability coefficient | cm/sec | Over 10-2 ~ -4 | KS K ISO11058 | ||
| Material | – | PP | KS K ISO9864 | ||
| Specific gravity | – | Over 0.9 | |||
| Shape | – | textile | Visual discrimination | ||
